MIL-DTL 24643/62 Profibus Data Cables
-
Product features:
- MIL-DTL 24643/62
- Profibus Data Cables
- Water-blocked and Non Water-blocked
Champlain Cable has a long history of success in the development and manufacture of data communication cables. We are qualified by the US Naval Sea Systems Command (NAVSEA) to supply of all variants of MIL-DTL 24643/62 shipboard profibus cable. With over 10 years of various first-QPL approvals totaling over 30 million feet of data cables installed on Naval vessels, no one else comes close. Dataclear® is the brand you can count on for Reliability, Service and Price.

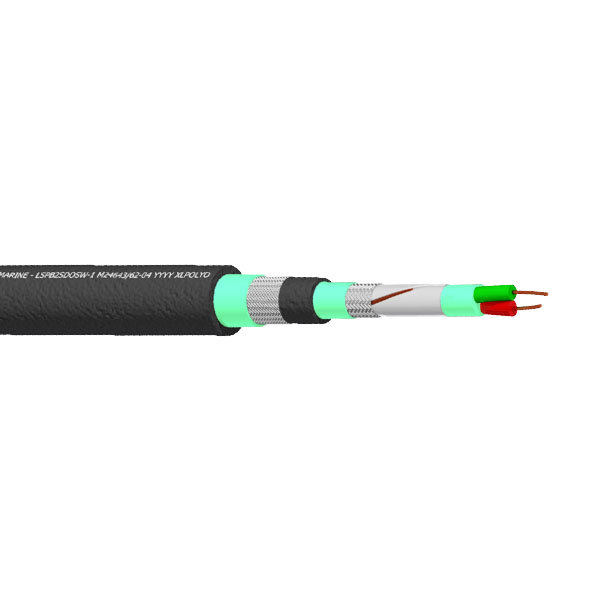

Dataclear® Marine /62 profibus cables are Low Smoke Zero Halogen (LSZH) Profibus cables to serve the shipboard market. Dataclear® Marine /62 provides two major solutions for shipboard communications:
- Replacement of halogenated insulations (PVC, Fluoropolymer) in confined shipboard compartments, thereby eliminating a major source of halogenated toxic gases in the event of fire.
- Maintains exceptional data communication capabilities in accordance with commercial Profibus protocol standards.
- High Temperature Rating: 80°C
- Low Temperature Rating: -20°C
- Voltage Rating: 150V
Specifications
|
Product Number |
MIL-DTL 24643/62 Type |
Pairs |
Conductor |
Shield* |
Water- blocked |
Jacket Color |
Cable OD (nom) |
|
22-1STP-LSZH/62 |
LSPB2SD-1 |
1 |
22 solid BC |
Single |
No |
Black |
0.390" |
|
22-1STP-LSZH/62-W |
LSPB2SDW-1 |
1 |
22 solid BC |
Single |
Yes |
Black |
0.405" |
|
22-1DSTP-LSZH/62 |
LSPB2SDOS-1 |
1 |
22 solid BC |
Double |
No |
Black |
0.500" |
|
22-1DSTP-LSZH/62-W |
LSPB2SDOSW-1 |
1 |
22 solid BC |
Double |
Yes |
Black |
0.530" |
* The drain wire has been eliminated in MIL-DTL-24643/62 Rev B
| Tensile Strength | |
| Insulation and Jacket (Un-aged) | 1300 min |
| Insulation (Retention after 168hrs at 136°C) | 975 min |
| Jacket (Retention after 168hrs at 136°C) | 780 min |
| Elongation | |
| Insulation and Jacket (Un-aged) | 160% min |
| Insulation (Retention after 168hrs at 136°C) | 120% min |
| Jacket (Retention after 168hrs at 136°C) | 96% min |
| Cross-link proof test (Jacket, Percent maximum) | 50% |
| Flame Propagation (Cable)* | No Failure |
| Tensile Strength | |
| Insulation and Jacket (Un-aged) | 1300 min |
| Insulation (Retention after 168hrs at 136°C) | 975 min |
| Jacket (Retention after 168hrs at 136°C) | 780 min |
| Elongation | |
| Insulation and Jacket (Un-aged) | 160% min |
| Insulation (Retention after 168hrs at 136°C) | 120% min |
| Jacket (Retention after 168hrs at 136°C) | 96% min |
| Cross-link proof test (Jacket, Percent maximum) | 50% |
| Flame Propagation (Cable)* | No Failure |
